Datasheet

The Fuzz Energy Local Controller is based on a reComputer industrial computer from Seeed Studio, R1000 series.

The model currently used has 4 GB of RAM and generally corresponds to the following versions:

  • reComputer R1024
  • reComputer R1124

Manufacturer documentation: Product flyer

Key specifications​

  • Processor: Raspberry Pi Compute Module 4 (CM4), Quad-core ARM Cortex‑A72 @ 1.5 GHz
  • RAM: 4 GB
  • Storage: 16 GB eMMC
  • Operating system: Linux

Network interfaces​

  • 1 × Gigabit Ethernet (10/100/1000 Mbps)
  • 1 × Ethernet 10/100 Mbps

Communication interfaces​

  • Isolated RS485 (usable for Modbus RTU)
  • USB 2.0 Type‑A
  • USB‑C (flash / maintenance)
  • HDMI 2.0

Power supply​

  • 9–36 V DC or 12–24 V AC
  • Typical consumption:
    • ~2.9 W at idle
    • ~5.5 W under load

Environment​

  • Passive cooling (fanless)
  • Protection rating: IP40
  • Operating temperature: −30 °C to +70 °C
  • DIN rail mounting possible

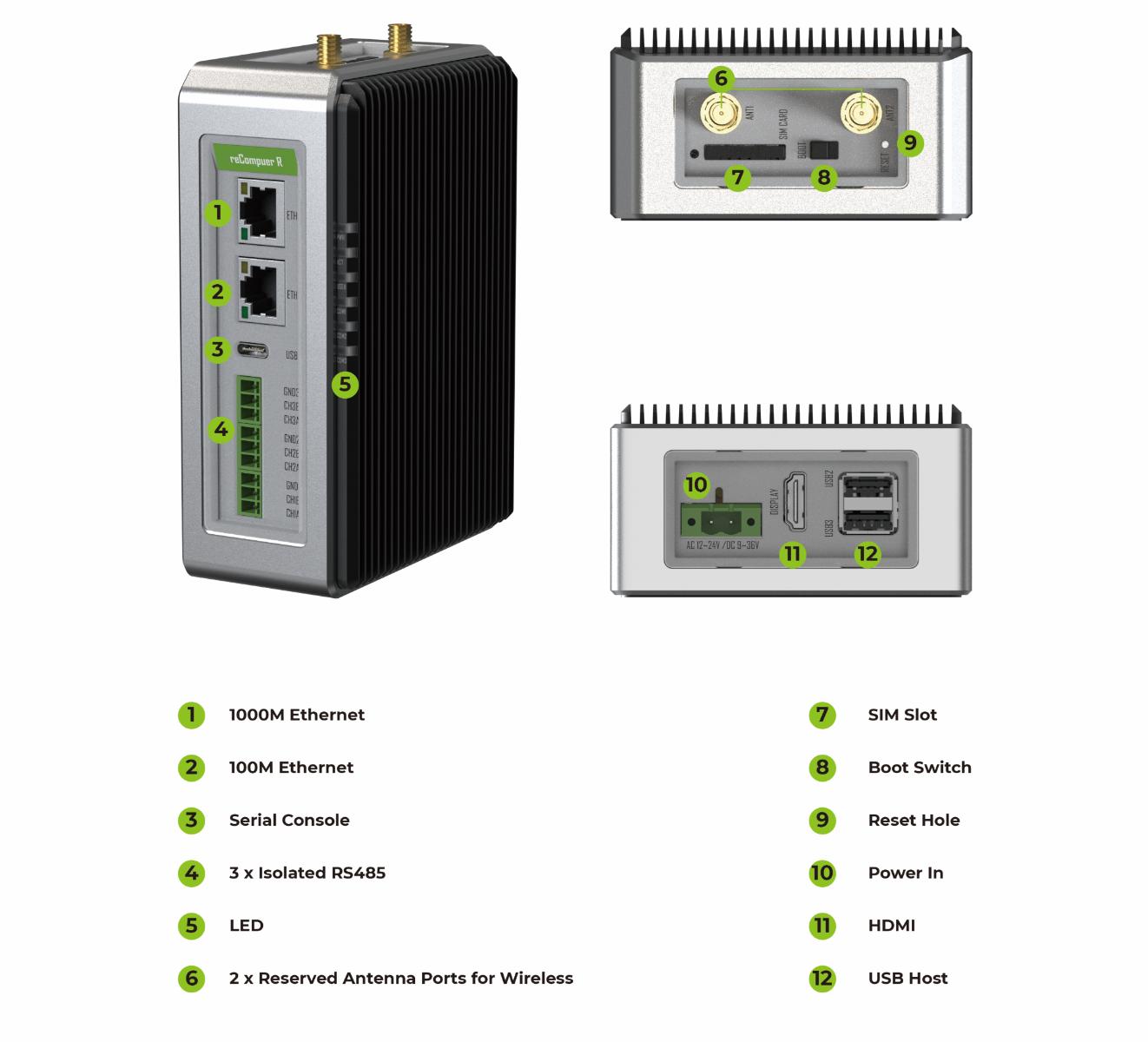

Ports of the reComputer R1000 R1000-series Local Controller connectors
